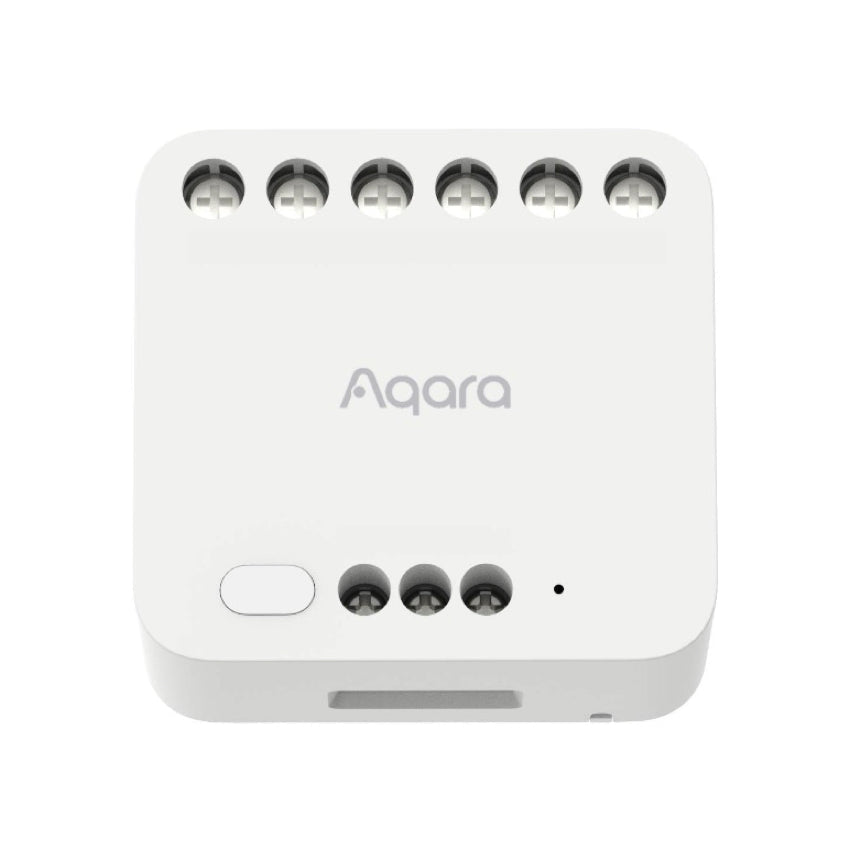

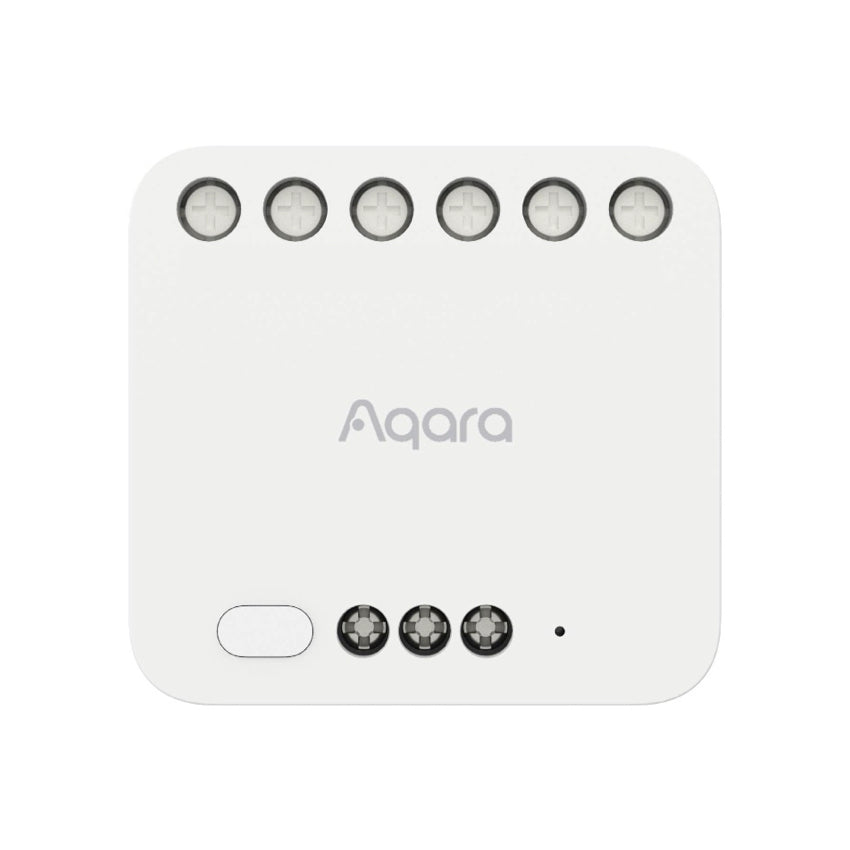

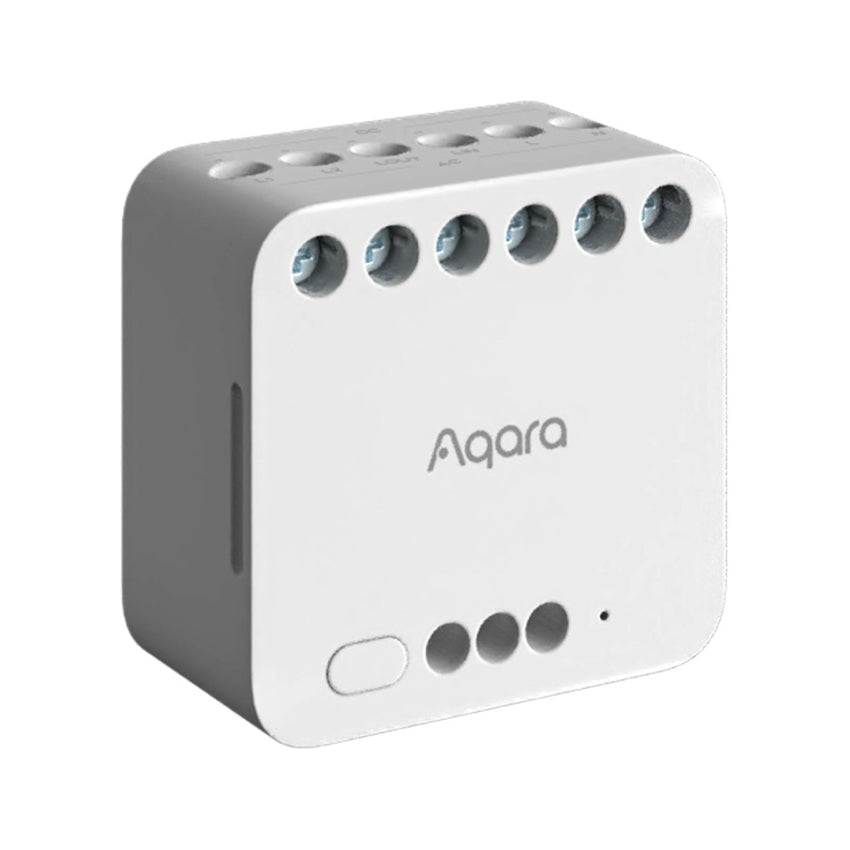

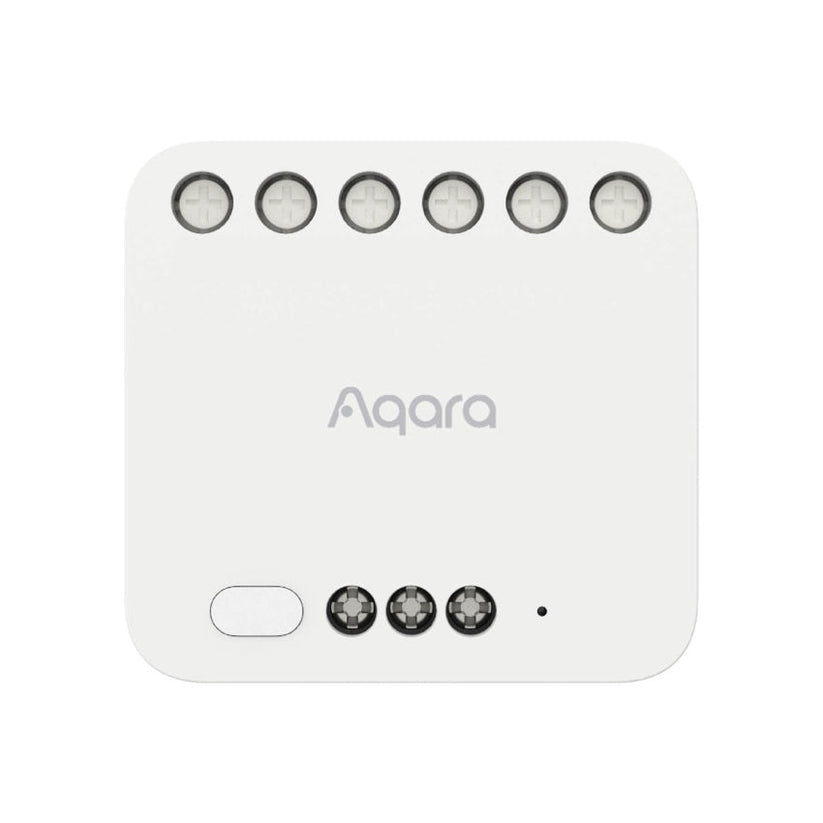

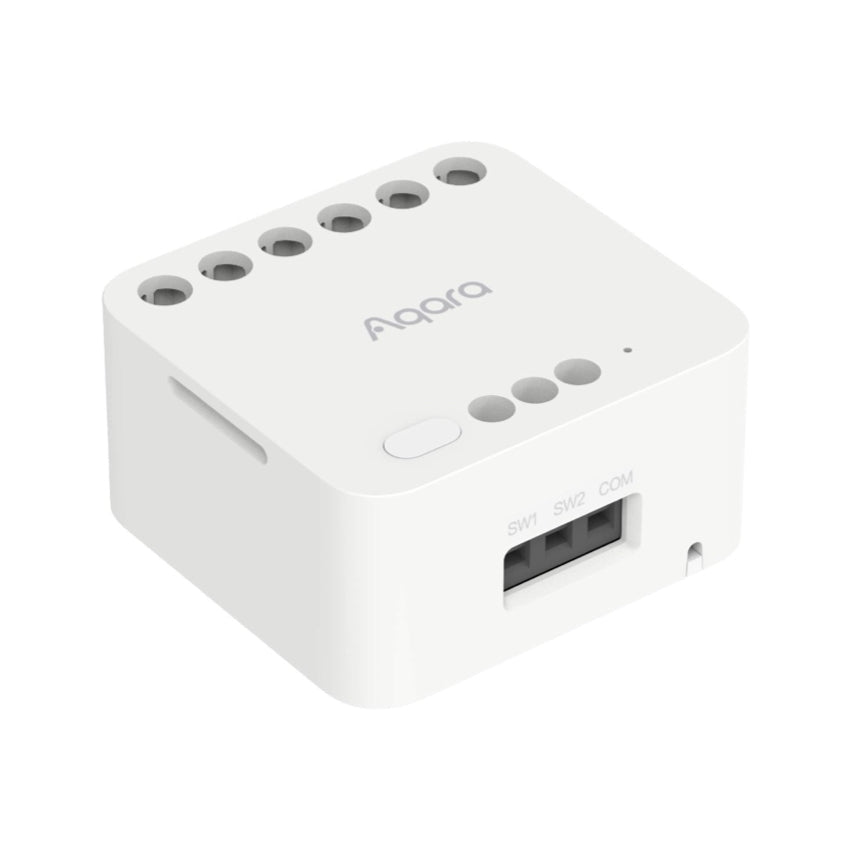

Aqara Dual Relay Module T2

AQARA Dual Relay Module T2

The Aqara Dual Relay Module T2 is a device that employs Zigbee technology to regulate power, controlling the on and off functions. It is capable of managing a range of devices including motors, garage doors, lights, switches, and sockets in two modes: dry contact and wet contact. This module can elevate the intelligence and potential of traditional equipment. Linked to the Apple Home platform, the device can be seamlessly operated via the Apple Home app. Additionally, it is broadly compatible with various third-party platforms. With the aid of a hub, features such as app-based remote control, timing control, and power statistics can be implemented.


Technical Specifications

Model : DCM-K01

Wireless Protocol : Zigbee

Dimension : 45.5 x 48 x 24 mm. (1.79 x 1.89 x 0.94 in.)

Rated Parameters(AC) : 100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent Lamp); Max. 1A, Max. 250W (LED, CFL Fluorescent Lamp); Max. 1A, Max. 1/4 HP (Motor) M.1.

Rated Parameters(DC) : 24-30V: Max.10A, Max. 300W (Resistive Load); 30-60V: Max.1A, Max. 60W (Resistive Load)

Zigbee Operation Frequency : 2405-2475 MHz

Zigbee Maximum Output Power : ≤ 13 dBm

Operating Temperature : -10°C - 40°C (14°F - 104°F)

Operating Humidity : 0 - 95% RH, no condensation
